Description
What’s Included
- G-code for the lamp body
- Clip-on base (.3mf) that can be sliced and printed separately

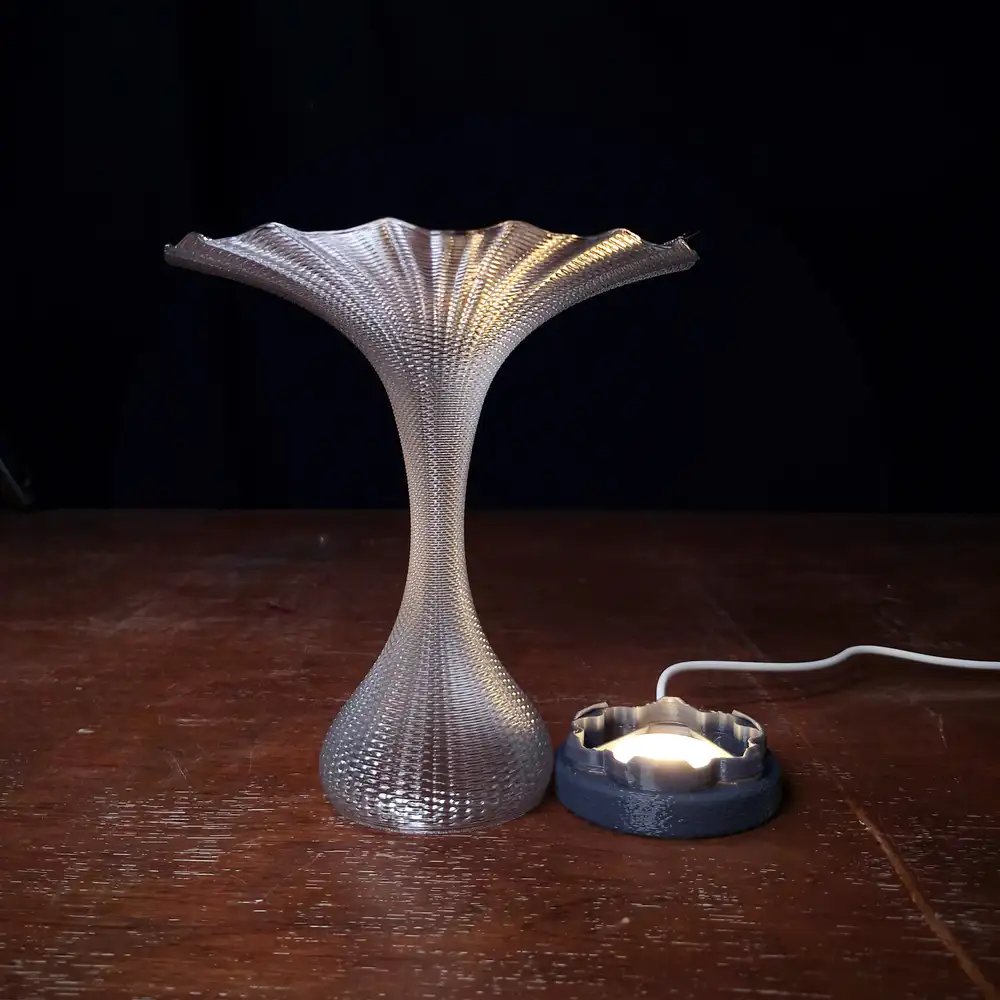

The included base features a print-in-place snap-fit design with integrated flexures. It securely holds both the lamp body and the light fitting while allowing repeated assembly and disassembly.
Excluded – IKEA KAPPLAKE, the USB-C Powered LED used in this project. Available for purchase on the IKEA webite.
Assembled Size
160mm (Width)
180mm (Height)
Before You Buy
- The lamp body is a G-code download, not an STL or 3MF model.
- The lamp body cannot be re-sliced or modified.
- A 0.8 mm nozzle is required.
- Designed for PETG printing.
How to Print
The lamp body is supplied as a generic G-code file. It can be previewed in most slicers, except Bambu Studio.
To print, copy the G-code directly to your printer using an SD card or USB drive.
Recommended Printer

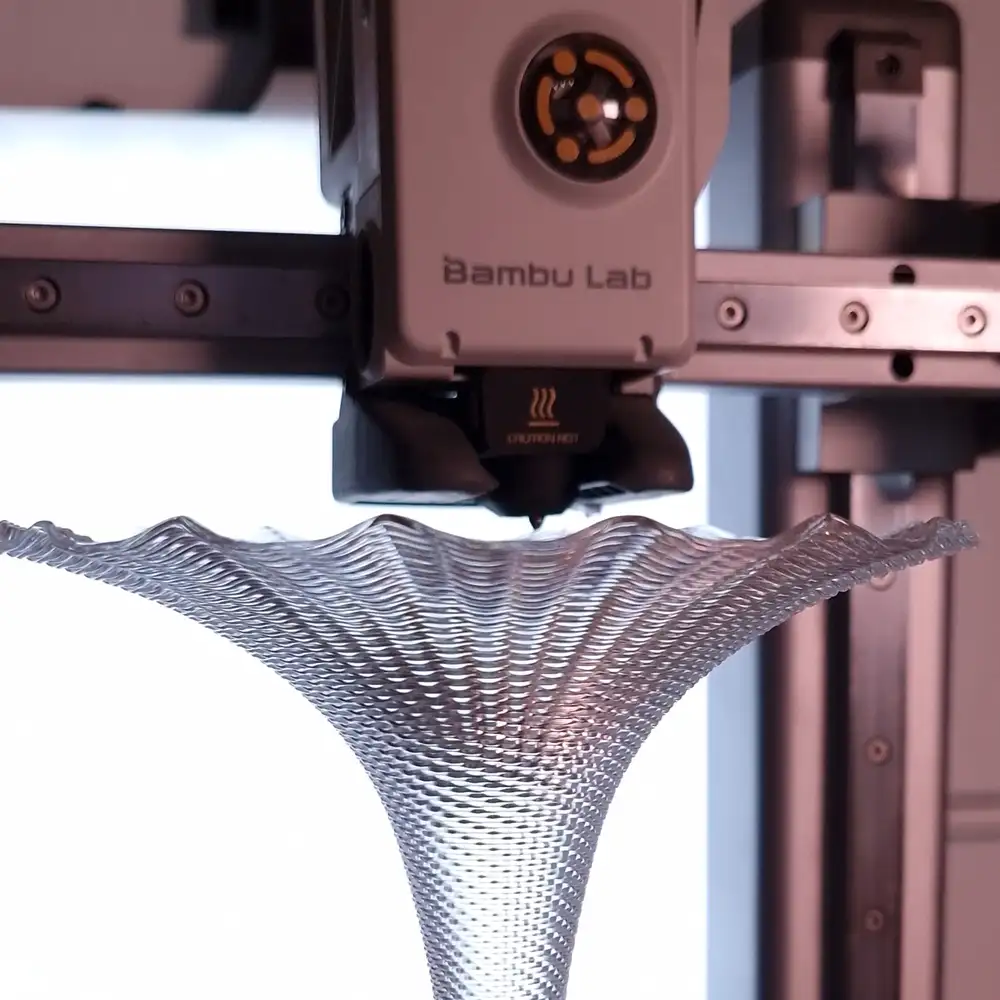

For this style of print, I recommend the Bambu Lab A1 Mini fitted with a 0.8 mm nozzle.
I’ve found it to be one of the most affordable and reliable printers for producing these designs. I use multiple A1 Minis for my own production because they consistently deliver excellent results.
For this type of work, I don’t use the AMS, as it increases the printer’s size and isn’t necessary for single-material printing.
If you are thinking about getting one, and are happy to support me by using my affiliate link you can Buy one using the link below.
Customising G-code
You can adjust several print settings by opening the G-code in any text editor. Personally, I use VS Code.
The editable section begins at line 27 – Editable Code Start
27 ;—————————–Editable code start
28 ; M221 set flow rate
29 ; this can be adjusted to fix under or over extrusion problems without re-exporting g-code
30 ; e.g. M221 S120 will increase to 120% the amount of plastic coming out the nozzle
31 M221 S100; flow rate 100%
32 M220 S100; 100% speed
33 M104 S245; heat nozzle to PETG temp
34;——————————-Editable code end
Need Help?
Email [email protected] if you have any questions or need help with your print.
Commercial Use
For commercial use, please subscribe to the Commercial License tier or email [email protected] to discuss licensing options.
Thank you for supporting ClayWoven. Your support is what makes this work possible.
